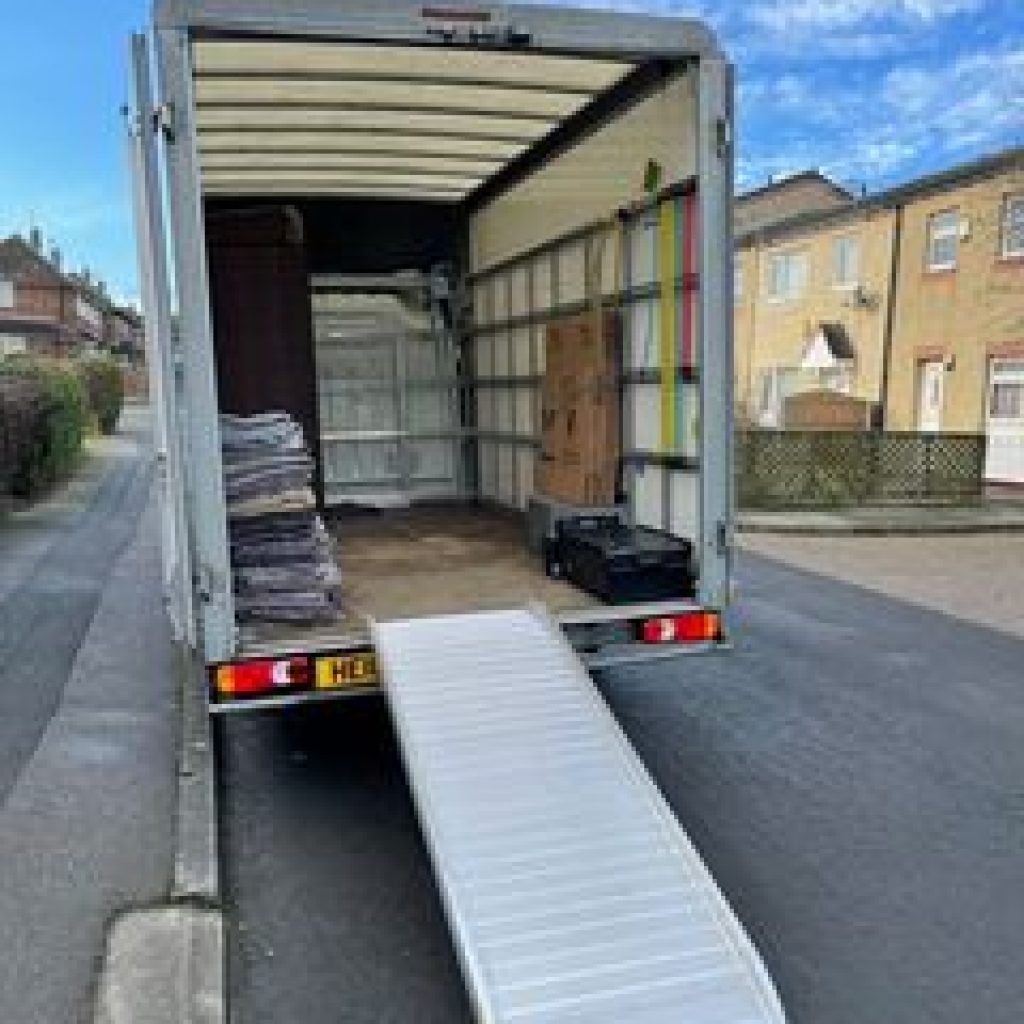

DnA Truck Ramp 1000kg

Manufactured using quality lightweight aluminium and an easy rest on connection allows easy deployment by one person and easy to store taking minimal truck load. The serrated flooring ensures traction during any form of weather while allowing goods to be loaded with minimal effort. Our ramps are tapered straight to the ground and the truck, leaving a smooth incline/decline for the perfect transition on and off the ramp.

All our Truck Ramps are tried and tested to a SWL of 750kg and for heavy duty 1000kg though this can be modified to much greater capacity.

We pride ourselves on offering variety, with lengths starting from 2700mm up to 4800mm and widths starting from 700mm up to 1100mm covering most industry standard trucks while offering the capability of further bespoke sizes when needed.

No vehicle modification required simply place and go!

Features

• Lightweight for easy handling
• Hand welded for durability that lasts
• Hook on connection also available
• No fitting required
• Manufactured from lightweight aluminium (type 6082 and equivalent)
• Load tested and certified to 750kg/1000kg
• Edges on each side of the Truck ramp to avoid steering off.
• Easily stored flat or upright when not in use.
• Augmented ramp weight ensures the ramp stays connected to the vehicle.

Please account for the thickness of materials used: The functional width of the ramp is 50mm less than it’s total. On models over 2.5m in Length, or with a SWL of >750kg, this reduction is 90mm

For safety reasons, we recommend that the ramp only be used to a height not exceeding one-third its length – or [Hmax = L/3]
